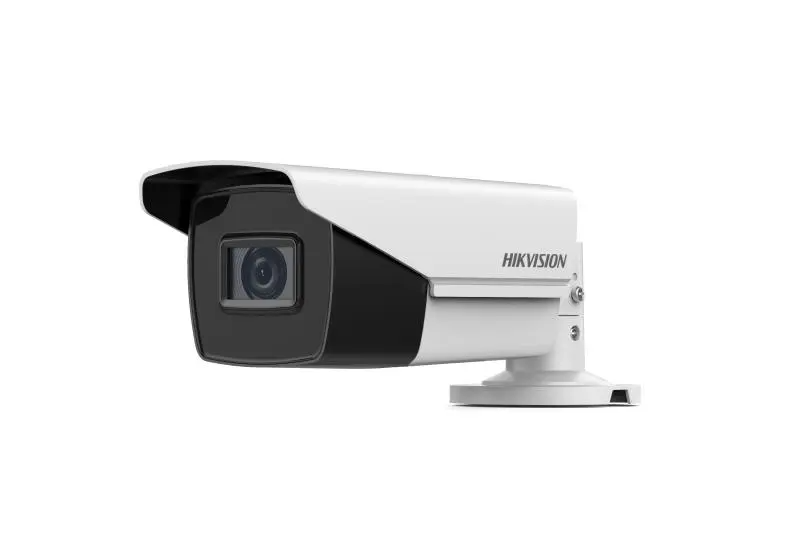

Hikvision DS-2CE19D3T-AIT3ZF Bullet Camera
- All products
- TVI-HD Cameras
- Hikvision DS-2CE19D3T-AIT3ZF Bullet Camera
- TVI-HD Cameras
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Product Specification
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Max. Resolution | 1920 (H) ×1080 (V) |
| Min. Illumination | 0.005 Lux@(F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens Type | 2.7 mm to 13.5 mm |
| Focal Length & FOV | 102° to 31° |
| Lens Mount | Φ 14 |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Frame Rate | PAL: 1080p@25fps; NTSC: 1080p@30fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥ 120 dB |
| Image Enhancement | Yes |
| White Balance | ATW/MWB |
| AGC | High/Medium/Low |
| Video Output | TVI/AHD/CVI/CVBS;1 HD analog output |
| Material | Front cover: Metal; Main body: Plastic; Bracket: Metal |
| Dimension | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") |
| Weight | Approx. 648 g (1.43 lb.); -A: Approx. 695 g (1.53 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Language | English |
| Power Supply | 12 VDC ±25%; -A: 24 VAC ±15%, 12 VDC ±20% *You are recommended to use one power adapter to supply the power for one camera. |
| Consumption | Max. 7.7 W; -A: Max. 9.7 W |
| IR Range | Up to 70 m |
| Approval | Protection: IP67 |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Max. Resolution | 1920 (H) ×1080 (V) |
| Min. Illumination | 0.005 Lux@(F1.6, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Signal System | PAL/NTSC |
| Lens Type | 2.7 mm to 13.5 mm |
| Focal Length & FOV | 102° to 31° |
| Lens Mount | Φ 14 |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Frame Rate | PAL: 1080p@25fps; NTSC: 1080p@30fps |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | ≥ 120 dB |
| Image Enhancement | Yes |
| White Balance | ATW/MWB |
| AGC | High/Medium/Low |
| Video Output | TVI/AHD/CVI/CVBS;1 HD analog output |
| Material | Front cover: Metal; Main body: Plastic; Bracket: Metal |
| Dimension | 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10") |
| Weight | Approx. 648 g (1.43 lb.); -A: Approx. 695 g (1.53 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Language | English |
| Power Supply | 12 VDC ±25%; -A: 24 VAC ±15%, 12 VDC ±20% *You are recommended to use one power adapter to supply the power for one camera. |
| Consumption | Max. 7.7 W; -A: Max. 9.7 W |
| IR Range | Up to 70 m |
| Approval | Protection: IP67 |
