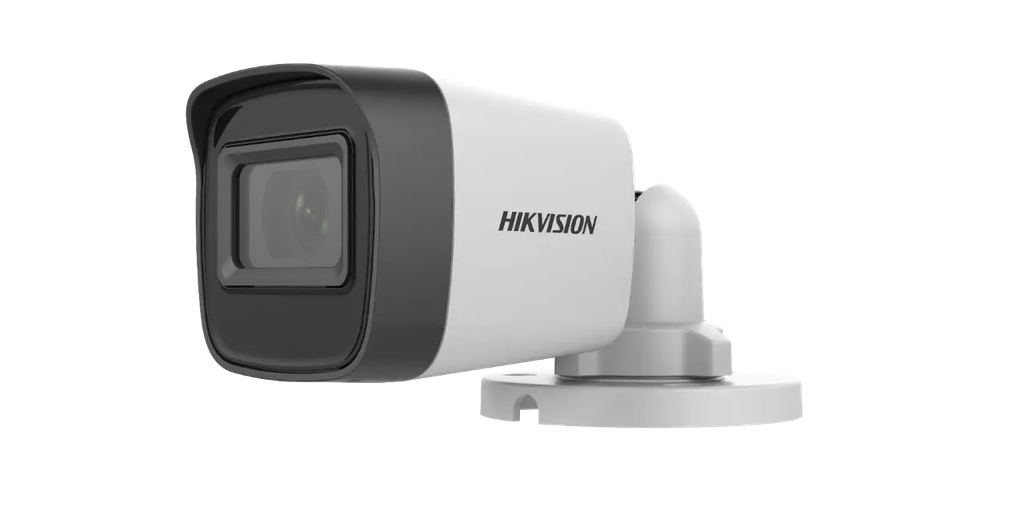

Hikvision DS-2CE16H0T-ITPF(C) Bullet Camera
- All products
- TVI-HD Cameras
- Hikvision DS-2CE16H0T-ITPF(C) Bullet Camera
- TVI-HD Cameras
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Product Specification
| Image Sensor | 5 MP CMOS image sensor |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360° |
| Signal System | PAL/NTSC |
| Lens Type | 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Focal Length & FOV | 2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°; 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°; 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°; 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72° |
| Lens Mount | M12 |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
| Frame Rate | TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps; AHD: 5M@20fps, 4M@30fps, 4M@25fps; CVI: 4M@30fps, 4M@25fps; CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC |
| White Balance | ATW/MANUAL |
| AGC | Support |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Material | Plastic |
| Dimension | 60.9 mm × 57.9 mm × 138.8 mm (2.39" × 2.28" × 5.47") |
| Weight | Approx. 147 g (0.32 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ±25% |
| Consumption | Max. 4.3 W |
| IR Range | Up to 25 m |
| Approval | Protection: IP67 |
| Image Sensor | 5 MP CMOS image sensor |
| Max. Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
| Day & Night | ICR |
| Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360° |
| Signal System | PAL/NTSC |
| Lens Type | 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Focal Length & FOV | 2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°; 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°; 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°; 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72° |
| Lens Mount | M12 |
| Image Parameters Switch | STD/HIGH-SAT |
| Image Settings | Brightness, Sharpness, Mirror, Smart IR |
| Frame Rate | TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps; AHD: 5M@20fps, 4M@30fps, 4M@25fps; CVI: 4M@30fps, 4M@25fps; CVBS: PAL/NTSC |
| Day/Night Mode | Auto/Color/BW (Black and White) |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC |
| White Balance | ATW/MANUAL |
| AGC | Support |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| Material | Plastic |
| Dimension | 60.9 mm × 57.9 mm × 138.8 mm (2.39" × 2.28" × 5.47") |
| Weight | Approx. 147 g (0.32 lb.) |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication | HIKVISION-C |
| Language | English |
| Power Supply | 12 VDC ±25% |
| Consumption | Max. 4.3 W |
| IR Range | Up to 25 m |
| Approval | Protection: IP67 |
