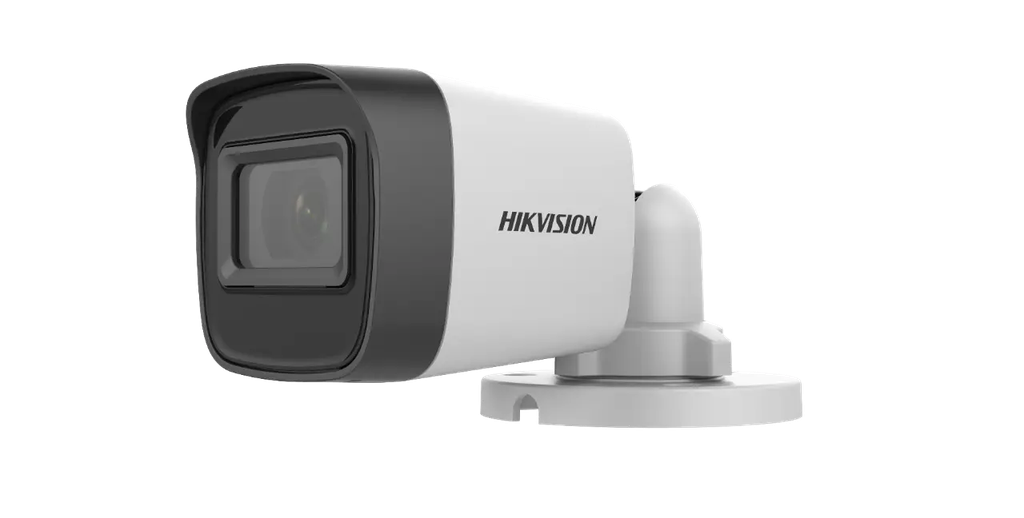

Hikvision DS-2CE16H0T-ITPF(C) Bullet Camera

Hikvision DS-2CE16H0T-ITPF(C) Bullet Camera

• 5 MP Fixed Mini Bullet Camera
• 5 MP bullet camera
• EXIR 2.0: advanced infrared technology with 25 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

This combination does not exist.

Analog HD Camera Bullet Value Series Hikvision

Product Specification

Image Sensor	5 MP CMOS image sensor
Max. Resolution	2560 (H) × 1944 (V)
Min. Illumination	Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & Night	ICR
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 90°, Rotation 0 to 360°
Signal System	PAL/NTSC
Lens Type	2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV	2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°; 2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°; 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°; 6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°
Lens Mount	M12
Image Parameters Switch	STD/HIGH-SAT
Image Settings	Brightness, Sharpness, Mirror, Smart IR
Frame Rate	TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps; AHD: 5M@20fps, 4M@30fps, 4M@25fps; CVI: 4M@30fps, 4M@25fps; CVBS: PAL/NTSC
Day/Night Mode	Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	BLC, HLC
White Balance	ATW/MANUAL
AGC	Support
Video Output	Switchable TVI/AHD/CVI/CVBS
Material	Plastic
Dimension	60.9 mm × 57.9 mm × 138.8 mm (2.39" × 2.28" × 5.47")
Weight	Approx. 147 g (0.32 lb.)
Operating Condition	-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication	HIKVISION-C
Language	English
Power Supply	12 VDC ±25%
Consumption	Max. 4.3 W
IR Range	Up to 25 m
Approval	Protection: IP67
