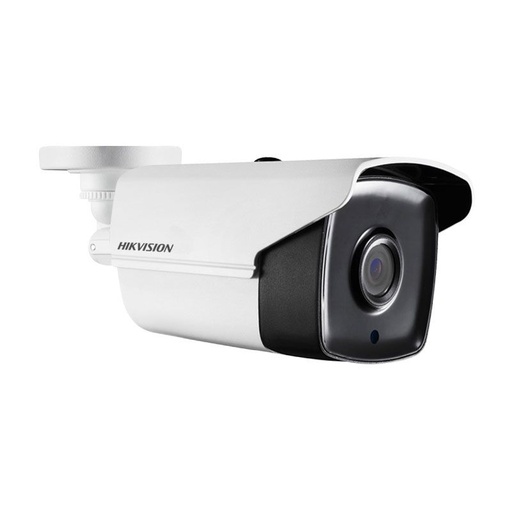

Hikvision DS-2CE16D7T-IT3 Bullet Camera

http://www.techcore.com.ph/web/image/product.template/15/image_1920?unique=1eed828

• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• True Day/Night
• OSD menu, DNR, Smart IR
• True WDR, up to 120dB
• EXIR technology, up to 20/40/80m IR distance
• IP66 weatherproof
• Up the Coax (HIKVISION-C)

This combination does not exist.

Contact Us
Analog HD Camera Bullet Value Series Hikvision



Product Specification


Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1928(H)*1088(V)
Min. Illumination: 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm optional
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.3°(12mm), 18.8°(16mm)
Lens Mount: M12
Adjustment Range: Pan: 0° – 360°; Tilt:0° – 90°; Rotate: 0° – 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120dB
Video Frame Rate: 720p@25fps/720p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
D/N Mode: Color/BW/SMART
White Balance: Auto/MWB
BLC: Support
AGC: Support
Language: English/Chinese
Function: Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity: 90% or less (non-condensing)
Power Supply: 12 VDC±15%
Power Consumption: Max. 5W
Weather Proof: IP66
IR Range: Up to 40m
Communication: Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension: 86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″)
Weight: Approx. 680g (1.5lb)



Download Center


Datasheet

Quick Start Guide

User Manual
