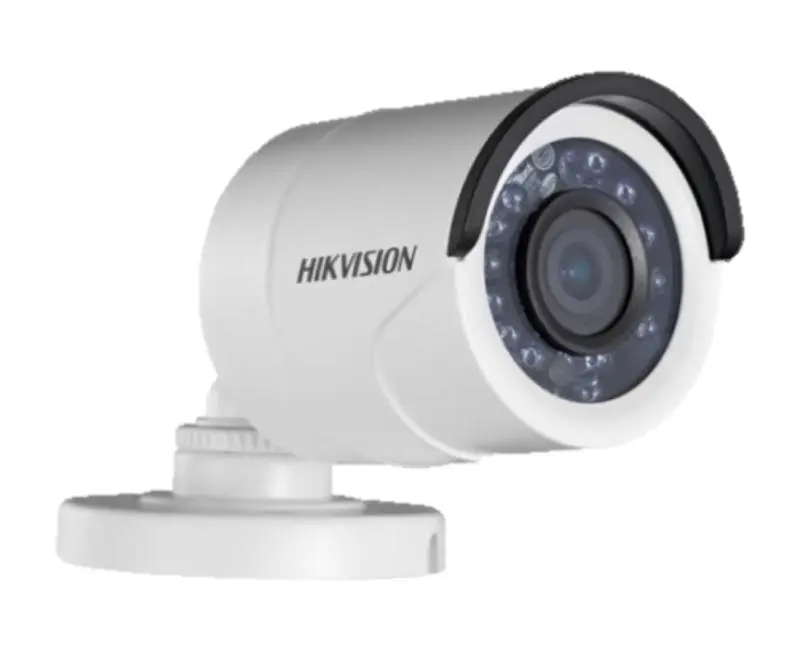

Hikvision DS-2CE16D0T-IRE Bullet Camera

http://www.techcore.com.ph/web/image/product.template/171/image_1920?unique=c5b1f68

• 2 MP PoC Fixed Mini Bullet Camera
• 2 MP PoC bullet camera
• Smart IR: up to 20 m IR distance
• Water and dust resistant (IP67)
• Transmits both HD video and power over the same coaxial cable

This combination does not exist.

Contact Us
Analog HD Camera Bullet Value Series Hikvision



Product Specification


Image Sensor 2 MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.01 Lux@(F2.0, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Signal System PAL/NTSC
Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV Horizontal FOV: 103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm)
Lens Mount M12
Supplement Light Type IR
Supplement Light Range IR Distance: Up to 20 m
Image Image Settings: Brightness;Sharpness;Mirror;AGC
Frame Rate PAL: 1080p@25fps; NTSC: 1080p@30fps
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC
Noise Reduction 2D DNR
Video Output 1 HD analog output
Power 12 VDC ± 30%/PoC.af, max. 3 W
Material Metal
Dimension Φ 70 mm × 154.5 mm (Φ 2.76" × 6.08")
Weight Approx. 400 g (0.88 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Approval Protection: IP67
