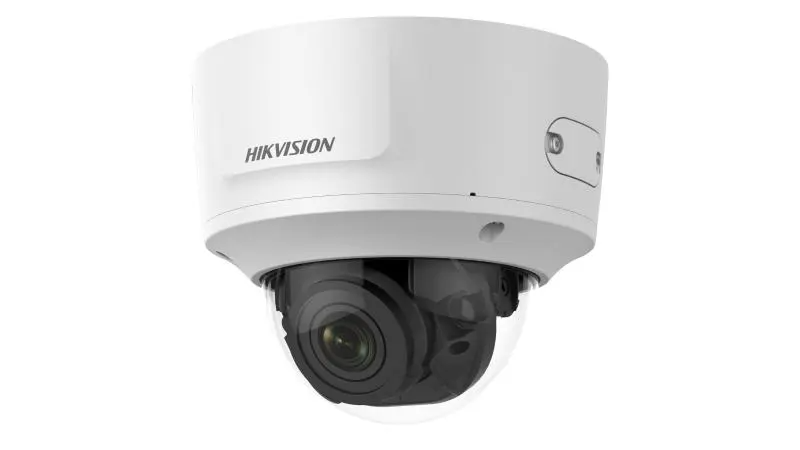

Hikvision DS-2CD2743G0-IZS Dome Camera

• 4 MP Outdoor WDR Motorized Varifocal Dome Network Camera
• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP66) and vandal proof (IK10)
• Motorized vari-focal lens for easy installation and monitoring
• Robust structure design with full metal materials.

Dome Pro Series IP HD Camera Hikvision
0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
Wide Dynamic Range 120dB
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
DNR 3D DNR
Lens 2.8 to 12 mm
Auto-Iris No
Aperture F1.6
Focus Auto
FOV horizontal FOV: 104° to 29°,vertical FOV: 55° to 17°,diagonal FOV: 125° to 34°
Lens Mount Φ14
Lens Type Motorized
IR Range Up to 30 m
Wavelength 850nm
Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
Video Max. Resolution 2688 × 1520
Main Stream 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
SVC H.264 and H.265 encoding
Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Event Line crossing detection, intrusion detection, face detection
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Image Enhancement BLC/3D DNR/HLC
Image Setting Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in
Wi-Fi Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users,3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Firmware Version 5.6.3
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Audio 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output 1Vp-p Composite Output(75Ω) (For adjustment only)
On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Approval Impact Protection: IK10
Compression Standard H.264+
Main stream supports H.265+
Main stream supports Smart Feature-Set
Face Detection Yes
Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Reset Yes
Startup And Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, terminal block,PoE (802.3af, class 3)
Power Consumption And Current 12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.35A to 0.2A, max. 12W
Material Metal
Dimensions Φ 153.4 × 133.1 mm (Φ 6.0" × 5.2")
Weight Camera: Approx. 1330 g (2.9 lb.),With Package: Approx. 1800 g (4.0 lb.)
Interface Protection IP66
