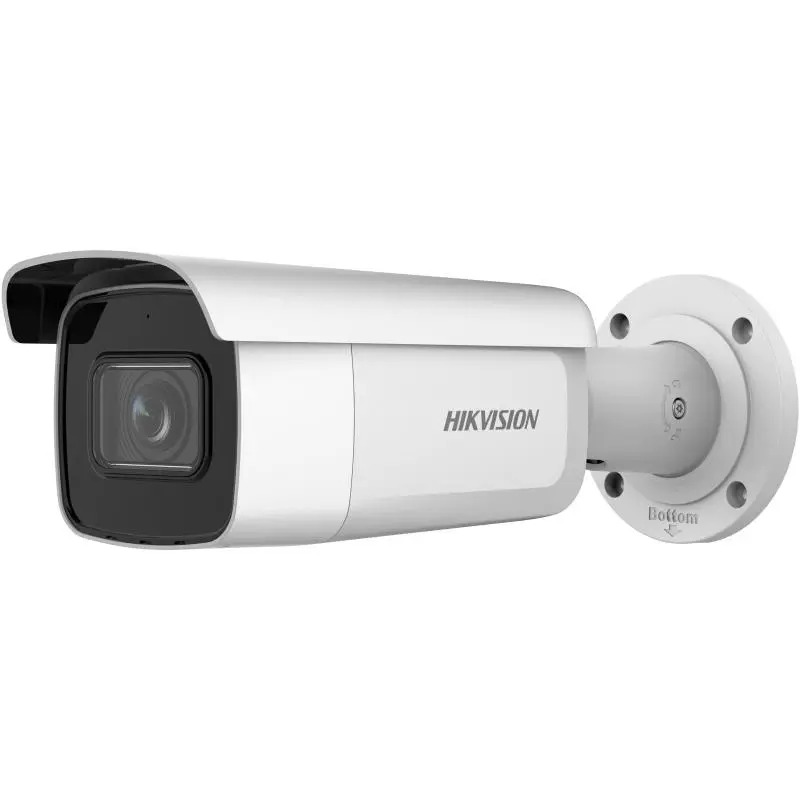

Hikvision DS-2CD2645FWD-IZS Varifocal Bullet Camera

• 4 MP Powered-by-DarkFighter Varifocal Bullet Network Camera
• High quality imaging with 4 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP66) and vandal proof (IK10)
• Motorized varifocal lens for easy installation and monitoring
• Robust structure design with full metal materials.

Bullet Pro Series IP HD Camera Hikvision
0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 120dB
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Focus Auto
Lens Type 2.8 to 12 mm，Motorized
FOV 2.8 mm to 12 mm, horizontal FOV: 114° to 32°, vertical FOV: 59° to 18°, diagonal FOV: 141° to 36.5°
Aperture F1.4
Lens Mount Φ14
IR Range Up to 50 m
Wavelength 850nm
Max. Resolution 2688 × 1520
Main Stream 50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080); 60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Sub Stream 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288); 60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Scalable Video Coding (SVC) Support H.264 and H.265 encoding
Region Of Interest (ROI) Support 1 fixed region for main stream and sub stream
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host Up to 32 users,3 levels: Administrator, Operator and User,
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
DNR 3D DNR
Image Enhancement BLC/3D DNR/HLC
Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Audio 1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Video Output 1Vp-p composite output (75 Ω) (For adjustment only)
On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
Face Detection Yes
Exception Detection Scene change detection
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Firmware Version V5.5.80
Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function One-key reset ，anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening，password protection, watermark, IP address filter
Startup And Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, terminal block for DC input, PoE(802.3at, class 4)
Power Consumption And Current 12 VDC, 1.2 A, max. 14.4 W, PoE (802.3at, 42.5V to 57V), 0.5 A to 0.3 A, max. 18 W
Camera Dimension Φ144.1 × 332.7 mm (Φ5. 7"× 13.1")
Camera Weight Camera: approx. 1893 g (4.2 lb.)
