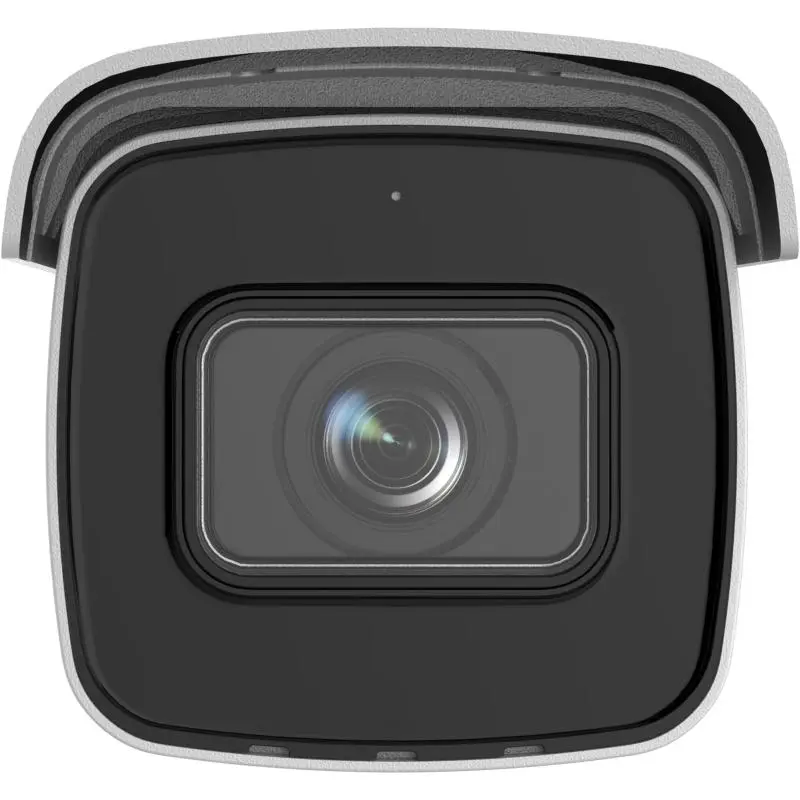

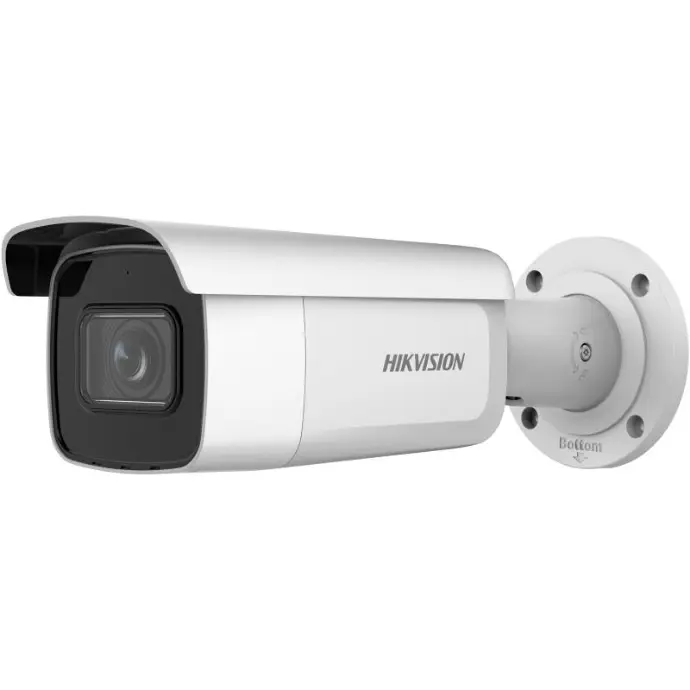

Hikvision DS-2CD2643G2-IZS Varifocal Bullet Camera

• 4 MP Outdoor WDR Motorized Varifocal Bullet Network Camera
• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP66) and vandal proof (IK10)
• Motorized vari-focal lens for easy installation and monitoring
• Robust structure design with full metal materials.

Bullet Pro Series IP HD Camera Hikvision
0.00 ₱ 0.00 ₱

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Product Specification


Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 120dB
Day & Night IR Cut Filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Focus Auto
Lens Type 2.8 to 12 mm，Motorized
FOV horizontal FOV: 104° to 29°,vertical FOV: 55° to 17°,diagonal FOV: 125° to 34°
Aperture F1.6
Lens Mount Φ14
Aperture Type Fixed
IR Range Up to 50 m
Wavelength 850nm
Video Max. Resolution 2688 × 1520
Main Stream 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720); 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Scalable Video Coding (SVC) H.264 and H.265 encoding
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 4Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
User/Host Up to 32 users,3 levels: Administrator, Operator and User
Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in
DNR 3D DNR
Image Enhancement BLC/3D DNR/HLC
Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, face detection
Face Detection Yes
Audio 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Output 1 Vp-p composite output(75Ω) (For adjustment only)
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, terminal block,PoE (802.3at, class 4)
Power Consumption And Current 12 VDC, 1.2A, max. 14.5W,PoE (802.3at, 42.5V to 57V), 0.43A to 0.3A, max. 18W
Camera Dimension Φ 144.13 × 332.73 mm (Φ 5.7" × 13.1")
Camera Weight Camera: Approx. 1740 g (3.8 lb.),With Package: Approx. 2610 g (5.8 lb.)



Download Center


Datasheet

Quick Start Guide

User Manual
