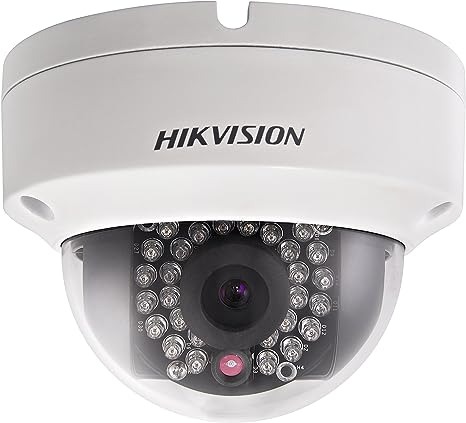

HIKVISION DS-2CD2142FWD-I 4MP WDR Fixed Dome Network Camera
- All products
- IP Cameras
- HIKVISION DS-2CD2142FWD-I 4MP WDR Fixed Dome Network Camera
- IP Cameras
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.05Lux @ (F1.2, AGC ON) in the color mode and 0.01Lux @ (F1.2, AGC ON) in B/W mode, 0 Lux with IR |
| Shutter Speed | 0.028Lux 1/3 s to 1/10,000 s @ (F2.0, AGC ON) ,0 Lux with IR |
| Lens | 2.7mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.7mm), 83°(4mm), 55.4°(6mm) |
| Lens Mount | M12 |
| Day &Night | IR cut filter with auto switch |
| DNR | 3D DNR |
| White Balance | Automatic/Manual |
| Wide Dynamic Range | 120dB |
| P&T rotation | Pan:0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355° |
| Video Compression | H.264 / MJPEG/H.264+ |
| H.264 Type | Main Profile |
| Video Bit Rate | 32 Kbps ~ 16 Mbps |
| Dual streams | Support |
| Max. Resolution | 2688×1520 |
| Max Frame Rate | 60Hz: Main stream:20fps(2688×1520), 25fps (2048x1536), 30fps(1920×1080), 30fps (1280x960), 30fps(1280×720),Sub stream: 30fps(352×240),30fps(704×480) |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser and AGC |
| BLC | Support, zone configurable |
| ROI Codec | Support |
| Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
| Detection | Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis |
| Alarm | Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols | IPV4 and IPV6, TCP/IP, UDP, ICMP, HTTP, HTTPS, SSL, DHCP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, ARP |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access, log access of the user, 10 simultaneous connection. |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Communication Interface | 1 RJ45 10M/100M Ethernet port, Base T |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128GB |
| Alarm interface | 1x alarm I/O *only for –S models |
| Audio interface | 1x audio I/O *only for –S models |
| Reset | Yes |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Protocols | 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transfer Rates | 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps |
| Wireless Range | 50 meters *The performance varies based on actual environment. |
| Operating Conditions | -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 25%, PoE (802.3af Class3) |
| Power Consumption | Max. 4W with the IR in ON, Max. 9W with pan and tilt |
| Warranty | The device has 36 months of the warranty |
| IR Range | Approx. 30 meters, Smart IR |
| Material | DS-2CD2142FWD-I, DS-2CD2142FWD-IS : Base&Top Cover: Metal DS-2CD2142FWD-IW, DS-2CD2142FWD-IWS: Base: Metal; Front Cover: Plastic |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Dimensions | Φ111 × 82 (4.4” × 3.2”) |
| Weight 500g | (1.1lbs) |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.05Lux @ (F1.2, AGC ON) in the color mode and 0.01Lux @ (F1.2, AGC ON) in B/W mode, 0 Lux with IR |
| Shutter Speed | 0.028Lux 1/3 s to 1/10,000 s @ (F2.0, AGC ON) ,0 Lux with IR |
| Lens | 2.7mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.7mm), 83°(4mm), 55.4°(6mm) |
| Lens Mount | M12 |
| Day &Night | IR cut filter with auto switch |
| DNR | 3D DNR |
| White Balance | Automatic/Manual |
| Wide Dynamic Range | 120dB |
| P&T rotation | Pan:0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355° |
| Video Compression | H.264 / MJPEG/H.264+ |
| H.264 Type | Main Profile |
| Video Bit Rate | 32 Kbps ~ 16 Mbps |
| Dual streams | Support |
| Max. Resolution | 2688×1520 |
| Max Frame Rate | 60Hz: Main stream:20fps(2688×1520), 25fps (2048x1536), 30fps(1920×1080), 30fps (1280x960), 30fps(1280×720),Sub stream: 30fps(352×240),30fps(704×480) |
| Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser and AGC |
| BLC | Support, zone configurable |
| ROI Codec | Support |
| Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
| Detection | Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis |
| Alarm | Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols | IPV4 and IPV6, TCP/IP, UDP, ICMP, HTTP, HTTPS, SSL, DHCP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, ARP |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access, log access of the user, 10 simultaneous connection. |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Communication Interface | 1 RJ45 10M/100M Ethernet port, Base T |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128GB |
| Alarm interface | 1x alarm I/O *only for –S models |
| Audio interface | 1x audio I/O *only for –S models |
| Reset | Yes |
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Protocols | 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transfer Rates | 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps |
| Wireless Range | 50 meters *The performance varies based on actual environment. |
| Operating Conditions | -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 25%, PoE (802.3af Class3) |
| Power Consumption | Max. 4W with the IR in ON, Max. 9W with pan and tilt |
| Warranty | The device has 36 months of the warranty |
| IR Range | Approx. 30 meters, Smart IR |
| Material | DS-2CD2142FWD-I, DS-2CD2142FWD-IS : Base&Top Cover: Metal DS-2CD2142FWD-IW, DS-2CD2142FWD-IWS: Base: Metal; Front Cover: Plastic |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Dimensions | Φ111 × 82 (4.4” × 3.2”) |
| Weight 500g | (1.1lbs) |
