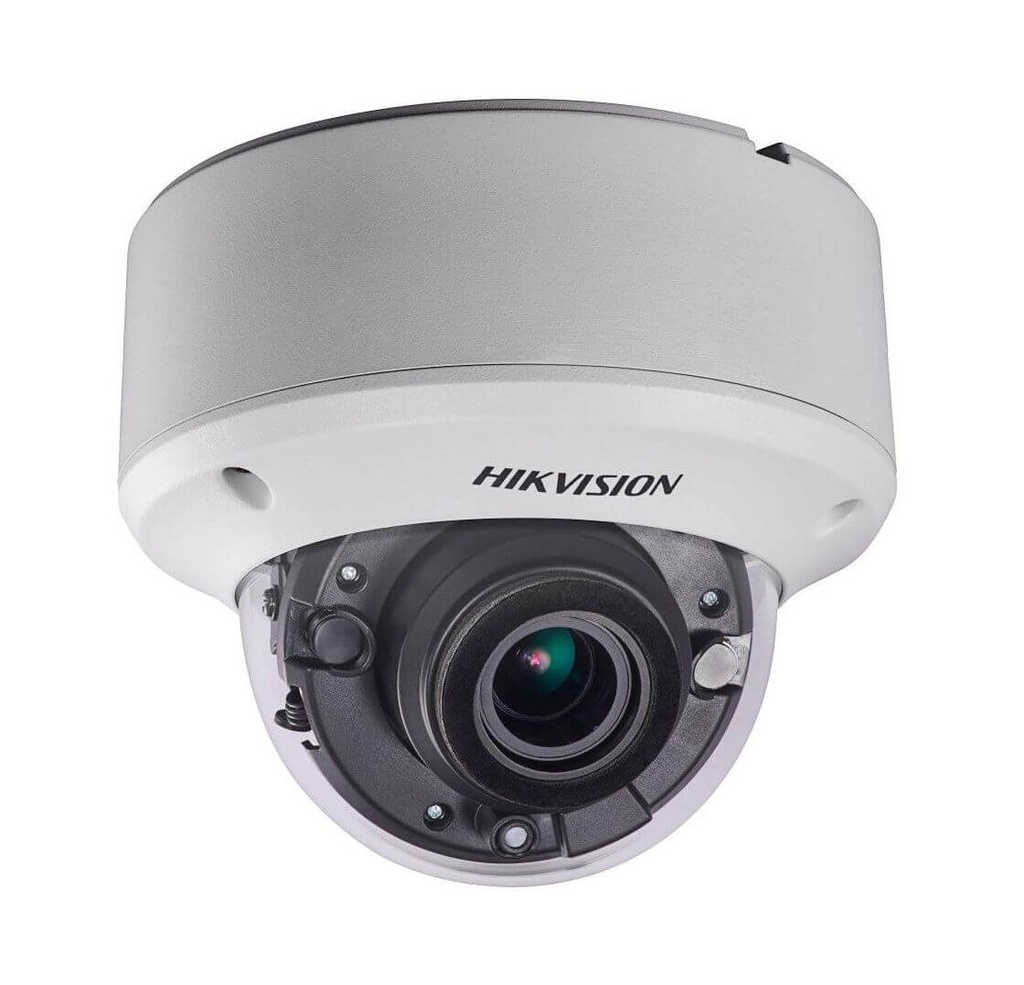

Hikvision DS-2CC52D9T-AVPIT3ZE Dome Camera

http://www.techcore.com.ph/web/image/product.template/10/image_1920?unique=6b4f5bd

• 2.0 Megapixel progressive scan CMOS
• Ultra-Low Light Pro
• 1920 × 1080 resolution
• Auto focus, 2.8 mm to 12 mm motorized vari-focal lens
• 120 dB true WDR, 3D DNR
• EXIR 2.0, smart IR, up to 40 m IR distance
• Dual outputs: 1 HD analog output/1 CVBS output
• IP67, IK10
• Up the Coax(HIKVISION-C)
• PoC.at, smart voltage detection
• 1 alarm in/out

This combination does not exist.

Contact Us
Analog HD Camera Dome Ultra Series Hikvision



Product Specification


Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1920(H)*1080(V)
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens Mount: φ14
Auto Iris: Support
Adjustment Range: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120dB
Video Frame Rate: PAL: 1080p@25fps
NTSC: 1080p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
CVBS Output: 1Vp-p Composite Output(75Ω/BNC)
Up the Coax: Support
Voltage Detection: Support
D/N Mode: Auto / Color / B/W
White Balance: ATW/AWC-SET/MANUAL
Private Mask: ON/OFF, 8 programmable privacy masks
Motion Detection: 4 programmable motion areas
Scene: Indoor/outdoor/indoor 1/low light
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 24 VAC/12 VDC ±30%/PoC.at
Impact Protection: IK10.
Weather Proof: IP67
IR Range: Up to 40m
Communication : Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension: Φ 145.2 mm × 124.1 mm (7.1″ × 4.9″)
Weight: Approx. 2000g (4.4 lb.)
