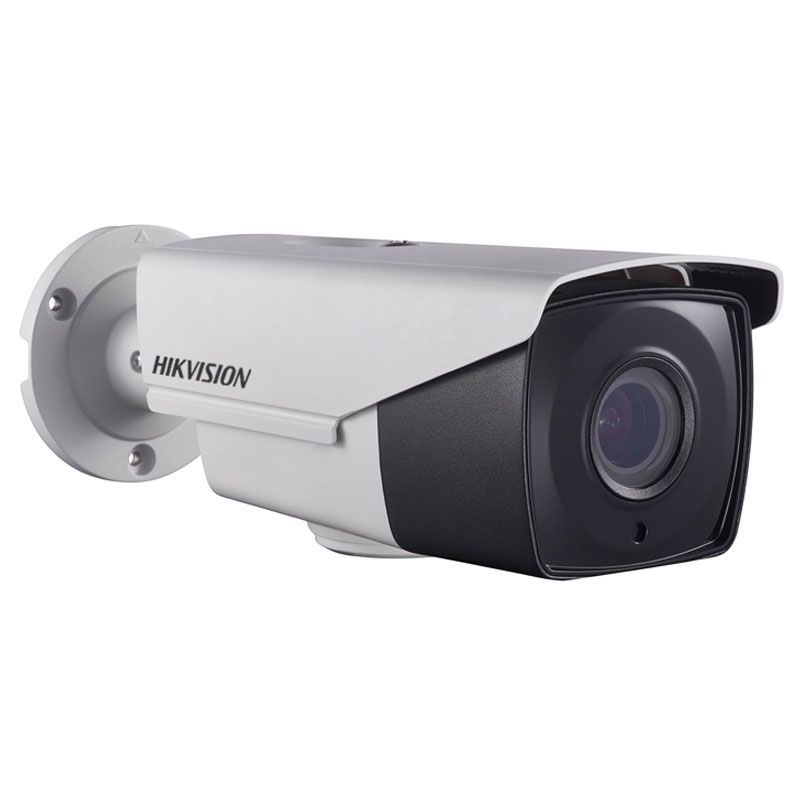

Hikvision DS-2CC12D9T-AIT3ZE Bullet Camera

-
  1. All Products
  2. TVI-HD Cameras
  3. Hikvision DS-2CC12D9T-AIT3ZE Bullet Camera

Hikvision DS-2CC12D9T-AIT3ZE Bullet Camera

http://www.techcore.com.ph/web/image/product.template/9/image_1920?unique=542e8d5

• 2 MP High-Performance CMOS
• Analog HD output, up to 1080p Resolution
• Ultra-Low Light Pro
• Autofocus, 2.8 mm to 12 mm Motorized Vari-Focal Lens
• 120dB True WDR, 3D DNR
• EXIR 2.0 with up to 130 ft (40 m) IR Range
• Dual Output: 1 HD Analog Output and 1 CVBS Output
• PoC.at, Smart Voltage Detection
• 1 Alarm Input and Output
• Up-the-Coax (HIKVISION-C)
• IP67 Protection

This combination does not exist.

Contact Us
Analog HD Camera Bullet Ultra Series Hikvision



Product Specification


Image Sensor: 2.0 megapixel progressive scan CMOS
Signal System: PAL/NTSC
Effective Resolution: 1920 (H) ×1080 (V)
Frame Rate: PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. Illumination: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50,000s
NTSC: 1/30 s to 1/50,000s
Slow Shutter: Max.: 30 times
Lens: 2.8 mm to 12 mm
Horizontal Field of View: 32.1°to 98°
Lens Mount: Φ 14
Day & Night: IR cut filter
Angle Adjustment (Bracket): Pan: 0°to 360°, Tilt: 0°to 90°, Rotate: 0°to 360°
Synchronization: Internal synchronization
WDR: >120 dB
AGC: Support
Day/Night Mode: Auto/Color/BW (White & Black)
White Balance: ATW/AWC-SET/MANUAL
Privacy Mask: ON/OFF, 8 programmable privacy masks
Motion: 4 programmable motion areas
Backlight Compensation: WDR/BLC/HLC/OFF
2D & 3D DNR: ON/OFF
Voltage Detection: Support
Functions: Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title
Scene: Indoor/outdoor/indoor1/low light
Video Output: 1 HD analog output/1 Vp-p composite output (75Ω/BNC)
Alarm: 1 alarm in/out
Operating Conditions: -40°C to 60°C (-40°F to 140°F), humidity: 90% or less (no condensation)
Power Supply: 24 VAC/12 VDC ±30%/PoC.at
Ingress Protection: IP67
IR Distance: Up to 40 m
Power Consumption: Max.: 7.5 W
Communication: Up the coax, Protocol: HIKVISION-C
Dimensions: 92 mm × 85.3 mm ×269.6 mm (3.62″ × 3.36″ × 10.61″)
Weight: Approx. 700 g (1.54 lb.)



Download Center


Datasheet

Quick Start Guide

User Manual
