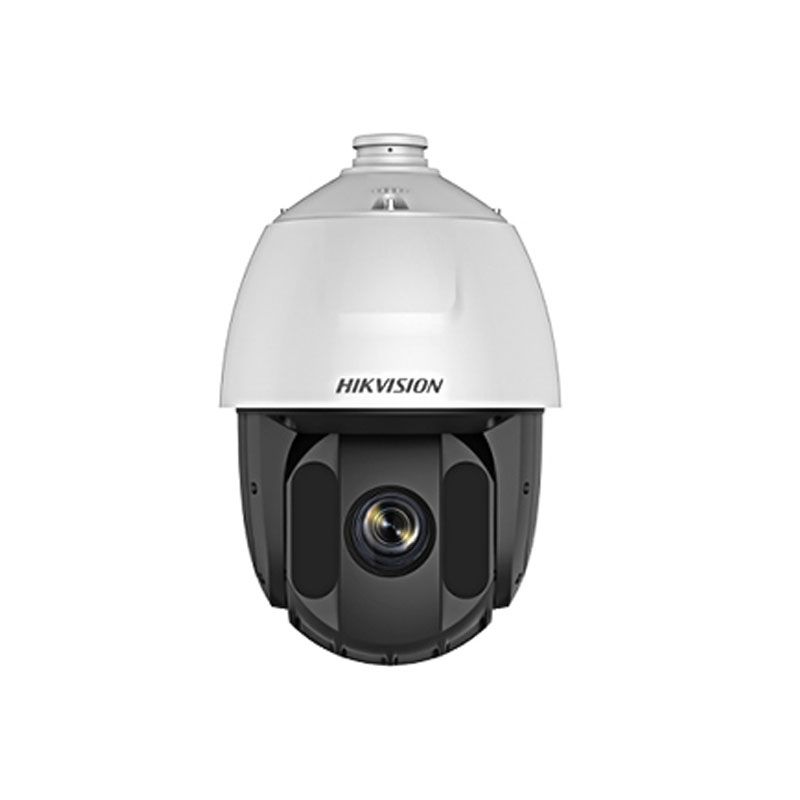

Hikvision DS-2AE5225TI-A Speed Dome

-
  1. All Products
  2. TVI-HD Cameras
  3. Hikvision DS-2AE5225TI-A Speed Dome

Hikvision DS-2AE5225TI-A Speed Dome

http://www.techcore.com.ph/web/image/product.template/8/image_1920?unique=11b26af

• 1/2.8″ HD progressive scan CMOS
• 1920 × 1080 resolution
• 25× optical zoom
• 120 dB true WDR (Wide Dynamic Range)
• Up to 150 m IR distance
• 3D intelligent positioning
• Switchable Turbo HD and CVBS outputs

This combination does not exist.

Contact Us
Analog HD Camera Dome Pro Series Hikvision



Product Specification


IR Distance: Up to 150 m
IR Intensity: Automatically adjusted depending on the zoom ratio
Video Output: 1 turbo 1080p output/1 CVBS output, (NTSC or PAL composite, BNC)
RS-485 Interface: Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
Menu Language: English
Power: 24 VAC
Max.30 W (IR:10 W)
Working Temperature: -30° C to 65° C (-22° F to 149° F)
Working Humidity: 90% or less
Protection Level: IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting: Various mounting modes optional
Dimension: Ø 208 mm × 305 mm (Ø 8.19″ ×12.01″)
Weight (approx.): 3.3 kg (7.28 lb.)



Download Center


Datasheet

Quick Start Guide

User Manual
