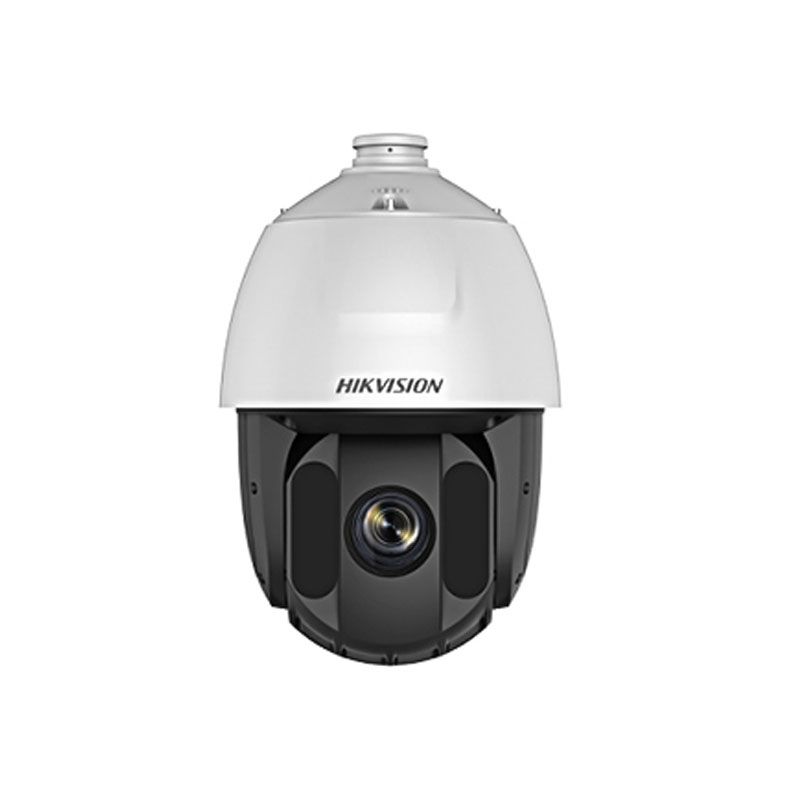

Hikvision DS-2AE5225TI-A Speed Dome

Hikvision DS-2AE5225TI-A Speed Dome

• 1/2.8″ HD progressive scan CMOS
• 1920 × 1080 resolution
• 25× optical zoom
• 120 dB true WDR (Wide Dynamic Range)
• Up to 150 m IR distance
• 3D intelligent positioning
• Switchable Turbo HD and CVBS outputs

Analog HD Camera Dome Pro Series Hikvision

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Product Specification

IR Distance:	Up to 150 m
IR Intensity:	Automatically adjusted depending on the zoom ratio
Video Output:	1 turbo 1080p output/1 CVBS output, (NTSC or PAL composite, BNC)
RS-485 Interface:	Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function	UTC protocol (or HIKVISION-C protocol in previous DVR)
Menu Language:	English
Power:	24 VAC Max.30 W (IR:10 W)
Working Temperature:	-30° C to 65° C (-22° F to 149° F)
Working Humidity:	90% or less
Protection Level:	IP66 standard (outdoor dome) TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting:	Various mounting modes optional
Dimension:	Ø 208 mm × 305 mm (Ø 8.19″ ×12.01″)
Weight (approx.):	3.3 kg (7.28 lb.)

Download Center

Datasheet

Quick Start Guide

User Manual
