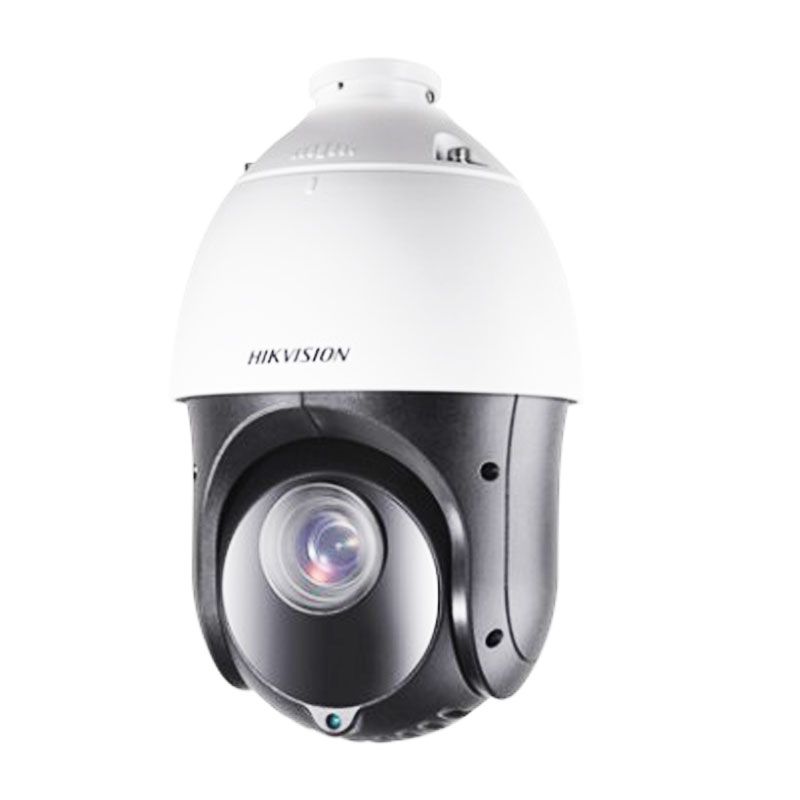

Hikvision DS-2AE4225TI-D Speed Dome

http://www.techcore.com.ph/web/image/product.template/6/image_1920?unique=ec1fd3a

• 1/2.8″ progressive scan CMOS
• 1920 × 1080 resolution
• 25× optical zoom
• 120 dB true WDR (Wide Dynamic Range)
• Up to 100 m IR distance
• 3D intelligent positioning
• Switchable TVI/AHD/CVI/CVBS video outputs

This combination does not exist.

Contact Us
Analog HD Camera Dome



Product Specification


Image Sensor: 1/2.8″ Progressive Scan CMOS
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR
AGC: Auto/Manual
BLC: ON/OFF
WDR: DWDR
Anti-shake: On / Off
Shutter Time: PAL: 1-1/10,000s
NTSC: 1-1/10,000s
Day& Night: ICR
Digital Zoom: 16x
Privacy Masking: 8 programmable privacy masks
Auto Focus: Auto / Semi-automatic / Manual
Focal Length: 4.8 mm to 120 mm, 25× Optical
Zoom Speed: Approx. 3.2 s (optical, wide to tele)
Angle of View: 57.6° to 2.5° (wide-tele)
Minimum Working Distance: 10-1500mm (Wide-Tele)
Aperture Range: F 1.6 to F 3.5
Pan Range: 360°endless
Pan Speed: Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
Tilt Range: -15°-90° (Auto Flip )
Tilt Speed: Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom: Rotation speed can be adjusted automatically
according to zoom multiples
Number of Preset: 256
Patrol: 10 patrols, up to 32 presets per patrol
Pattern: 5 patterns, with the total recording time no less than 10 minutes
Power loss recovery: Support
PTZ Position Display: ON/OFF
IR Distance: 100m
IR irradiation angle: Adjustable by zoom
UTC function: UTC protocol (or HIKVISION-C protocol in previous DVR)
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language: English
Power Supply: 12V DC
Power Consumption: Max.20 W (IR:7 W)
Working Temperature/Humidity: -30 °C-65°C(-22°F-149°F)
90% or less
Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
