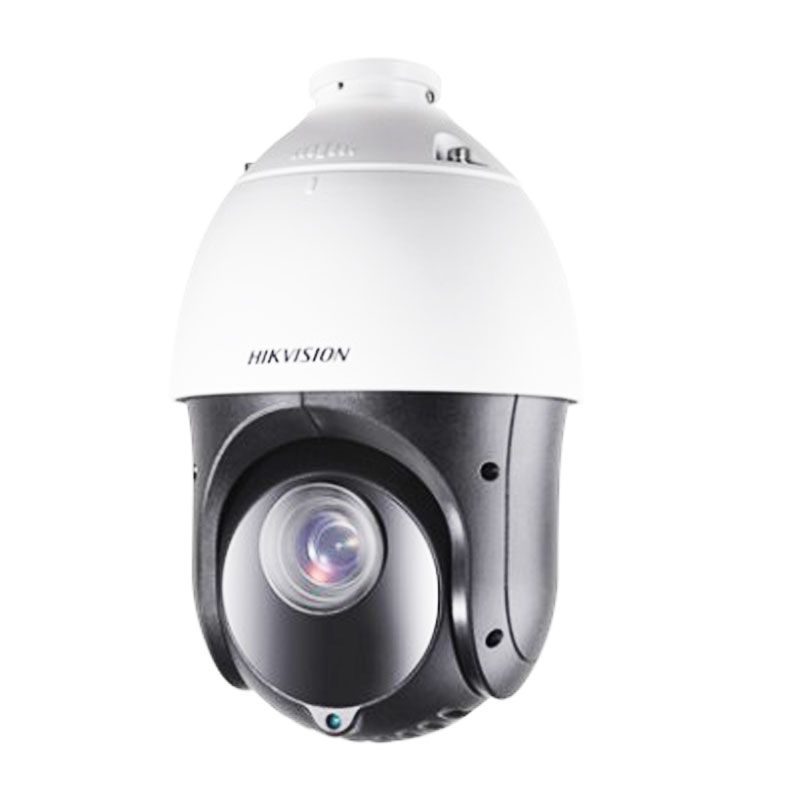

Hikvision DS-2AE4225TI-D Speed Dome
- All products
- TVI-HD Cameras
- Hikvision DS-2AE4225TI-D Speed Dome
- TVI-HD Cameras
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Product Specification
| Image Sensor: | 1/2.8″ Progressive Scan CMOS |
|---|---|
| Effective Pixels: | 1920(H)x1080(V) |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
| AGC: | Auto/Manual |
| BLC: | ON/OFF |
| WDR: | DWDR |
| Anti-shake: | On / Off |
| Shutter Time: | PAL: 1-1/10,000s NTSC: 1-1/10,000s |
| Day& Night: | ICR |
| Digital Zoom: | 16x |
| Privacy Masking: | 8 programmable privacy masks |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Focal Length: | 4.8 mm to 120 mm, 25× Optical |
| Zoom Speed: | Approx. 3.2 s (optical, wide to tele) |
| Angle of View: | 57.6° to 2.5° (wide-tele) |
| Minimum Working Distance: | 10-1500mm (Wide-Tele) |
| Aperture Range: | F 1.6 to F 3.5 |
| Pan Range: | 360°endless |
| Pan Speed: | Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s |
| Tilt Range: | -15°-90° (Auto Flip ) |
| Tilt Speed: | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | 256 |
| Patrol: | 10 patrols, up to 32 presets per patrol |
| Pattern: | 5 patterns, with the total recording time no less than 10 minutes |
| Power loss recovery: | Support |
| PTZ Position Display: | ON/OFF |
| IR Distance: | 100m |
| IR irradiation angle: | Adjustable by zoom |
| UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language: | English |
| Power Supply: | 12V DC |
| Power Consumption: | Max.20 W (IR:7 W) |
| Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F) 90% or less |
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
| Image Sensor: | 1/2.8″ Progressive Scan CMOS |
|---|---|
| Effective Pixels: | 1920(H)x1080(V) |
| Signal System: | PAL/NTSC |
| Minimum Illumination: | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR |
| AGC: | Auto/Manual |
| BLC: | ON/OFF |
| WDR: | DWDR |
| Anti-shake: | On / Off |
| Shutter Time: | PAL: 1-1/10,000s NTSC: 1-1/10,000s |
| Day& Night: | ICR |
| Digital Zoom: | 16x |
| Privacy Masking: | 8 programmable privacy masks |
| Auto Focus: | Auto / Semi-automatic / Manual |
| Focal Length: | 4.8 mm to 120 mm, 25× Optical |
| Zoom Speed: | Approx. 3.2 s (optical, wide to tele) |
| Angle of View: | 57.6° to 2.5° (wide-tele) |
| Minimum Working Distance: | 10-1500mm (Wide-Tele) |
| Aperture Range: | F 1.6 to F 3.5 |
| Pan Range: | 360°endless |
| Pan Speed: | Pan manual speed: 0.1° to 80°/s Pan preset speed: 80°/s |
| Tilt Range: | -15°-90° (Auto Flip ) |
| Tilt Speed: | Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset: | 256 |
| Patrol: | 10 patrols, up to 32 presets per patrol |
| Pattern: | 5 patterns, with the total recording time no less than 10 minutes |
| Power loss recovery: | Support |
| PTZ Position Display: | ON/OFF |
| IR Distance: | 100m |
| IR irradiation angle: | Adjustable by zoom |
| UTC function: | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Menu Language: | English |
| Power Supply: | 12V DC |
| Power Consumption: | Max.20 W (IR:7 W) |
| Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F) 90% or less |
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
