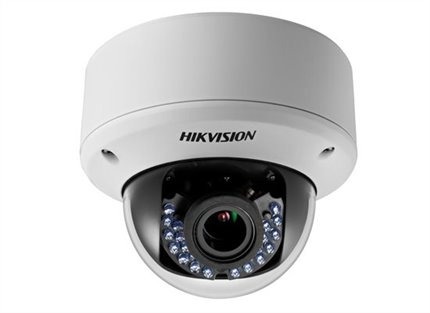

HIKIVISION DS-2CE56C5T- AVPIR3

HIKIVISION DS-2CE56C5T- AVPIR3

-720p Video Output
-2.8 mm to 12 mm Varifocal Lens
-True Day/Night
-OSD Menu, 3D DNR, Smart IR
-Up to 130 Feet IR Range
-IP66 Protection and IK10 Vandal Resistance
-UTC Function (Hikvision-C Protocol)
-24 VAC/12 VDC

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Image Sensor:	1.27MP CMOS Image Sensor
Signal System:	PAL/NTSC
Effective Pixels:	1305(H)x977(V)
Min. Illumination:	0.001 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time:	1/25(1/30) s to 1/50,000 s
Lens:	2.8-12mm @ F1.4
Angle of view:	92° - 29.3°
Lens Mount:	φ14
Adjustment Range:	Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355°
Day& Night:	IR cut filter with auto switch
Video Frame Rate:	720p@25fps/720p@30fps
HD Video Output:	1 Analog HD output
Synchronization:	Internal Synchronization
CVBS Output:	1Vp-p Composite Output(75Ω/BNC)
S/N Ratio:	More than 62 dB
Up the Coax:	Support
Automatic Exposure:	Globe AE/DWDR
Auto Gain:	Low/Middle/High/Off
D/N Mode:	Color/ BW/ EXT
Auto White Balance:	Auto / Manual
Private Mask:	On/Off, maximum 8 zones
Motion Detection:	On/Off, maximum 4 zones
Language:	English/Chinese
Function:	Digital Wide Dynamic Range, 3D Digital Noise Reduction, Sharpness, Brightness, Digital Zoom, Mirror
Operating Conditions:	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity	90% or less (non-condensing)
Power Supply:	12 VDC±15% -A: 12 VDC±15%, 24 VAC±15%
Power Consumption:	Max. 4W -A: Max. 5W
Impact Protection:	IK10.
Weather Proof:	IP66
IR Range:	Up to 40m
Communication :	Up the coax
Protocol:	Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimension:	φ145.3 × 124.2 mm (φ5.72” × 4.89”)
Weight:	880 g (1.95 lb)
