| Appearance |

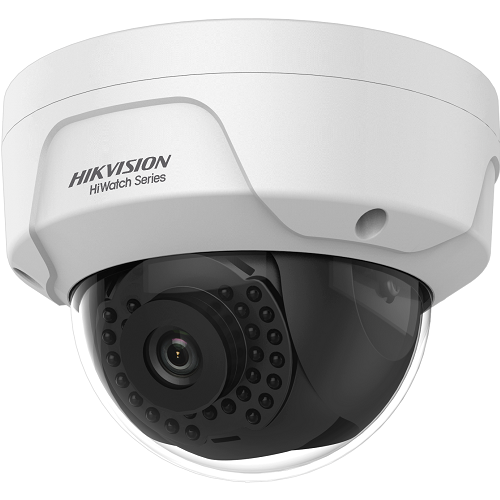

Dome |
| Image Sensor |
1/3" progressive scan CMOS |
| Min. Illumination |
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON) |
| Shutter Speed |
1/3 s to 1/100, 000 s |
| Slow Shutter |
Yes |
| Auto-Iris |
No |
| Day & Night |
IR cut filter |
| Digital Noise Reduction |
3D DNR |
| WDR |
120 dB |
| Angle Adjustment |
Pan: 0° to 355°, tilt: 0° to 75° |
| Focal Length |
2.8 mm, 4 mm |
| Aperture |
F2.0 |
| Focus |
Fixed |
| Angle of view |
2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88° |
| Lens Mount |
M12 |
| IR Range |
Up to 30 m |
| Wavelength |
850 nm |
| Video Compression |
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| H.264+ |
Main stream supports |
| H.265 Type |
Main Profile |
| H.265+ |
Main stream supports |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| Region of Interest |
1 fixed region for main stream and sub-stream |
| Resolution |
4MP |
| Main Stream Max. Frame Rate |
50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Sub-stream Max. Frame Rate |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement |
BLC, 3D DNR |
| Image Setting |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch |
Auto, scheduled |
| Alarm Trigger |
Motion detection, video tampering alarm, illegal login |
| Network Storage |
NAS (NFS, SMB/CIFS) |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| API |
ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View |
Up to 6 channels |
| User/Host |
Up to 32 users |
| 3 levels: |
Administrator, Operator and User |
| Client |
iVMS-4200, Hik-Connect |
| Web Browser |
IE8+, Chrome 31.0-44, Firefox 30.0-51 |
| Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| Operating Conditions |
-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing) |
| Power Supply |
12 VDC ± 25%, 5.5 mm coaxial power plug |
| PoE |
(802.3af, class 3) |
| Power Consumption |
12 VDC, 0.5 A, Max: 5.5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 7 W |
| Ingress Protection level |
IP67 |
| Impact Protection |
IK10 |
| Material |
Bubble: plastic, front cover: plastic, bottom base: metal |
| Dimensions |
Camera: Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2")
With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| Weight |
Camera: approx. 410 g (0.9 lb.)
With package: approx. 610 g (1.3 lb.) |
