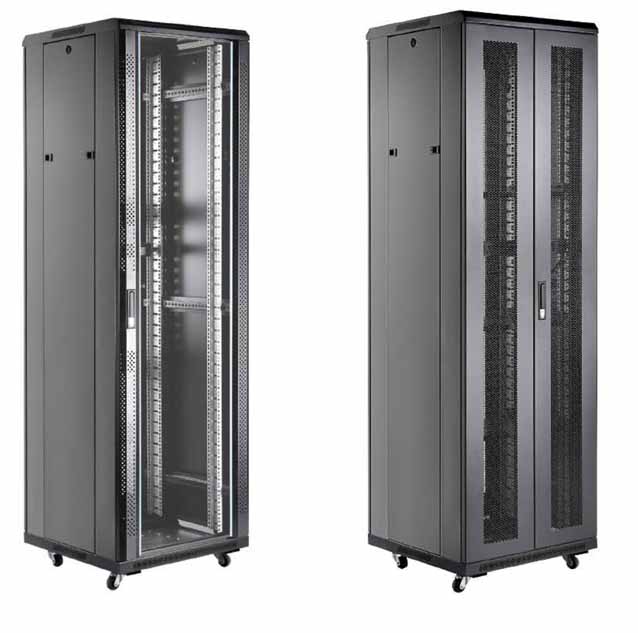

● Tempered glass front door
● Vented split rear door
● OEM service
● Door frame with vented holes

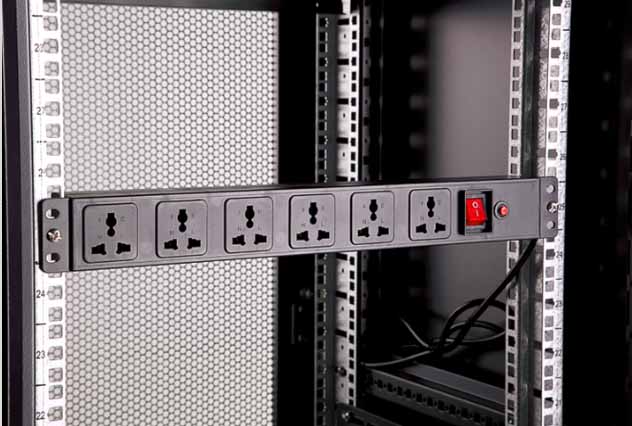

● 19” horizontal PDU

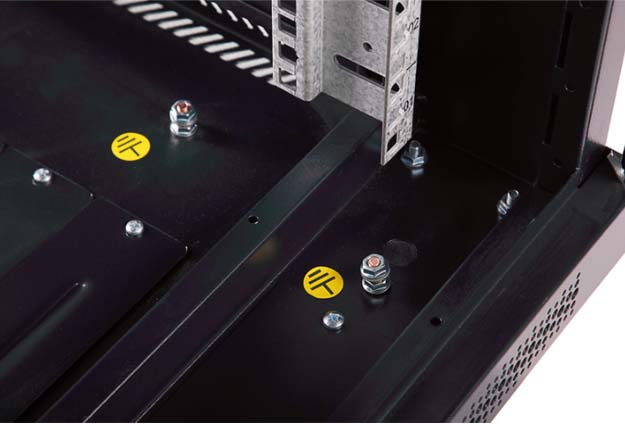

● Grounding mark

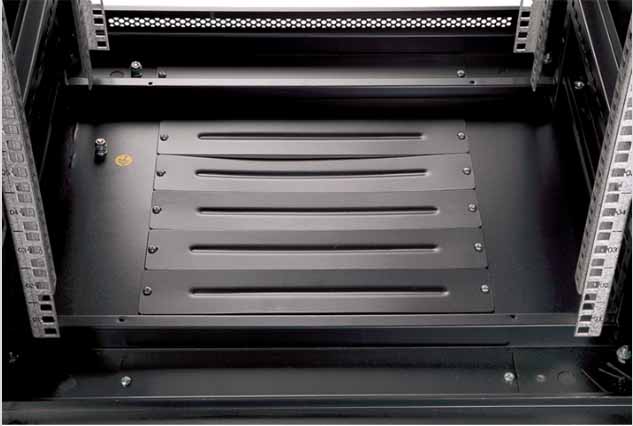

● Pre-punched holes for cabling
● Cooling fan unit (optional)
● Standard: Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard.
● Compatible with metric ETSI and 19 inch international standard.
● Material: Zinc plated mounting profiles, SPCC Cold rolled steel.
● Material Thickness: Mounting profile: 2.0mm, mounting rails: 1.2mm, Others: 1.0mm
● Loading Capacity: 800kg
● Protection grade: IP20
● Ventilation Rate of Cabinet doors: ≥75%
● Surface Finish: Degreasing, Pickling, Phosphating, Powder Coating
● Color: RAL9004(Black), RAL7035(Grey white)
Advantages:
● Secure, firm and reliable
● Easy to maintain equipment
● Two Packing Ways:
1. Assembly packing to save labour cost, ready to resell or use
2. Disassembly packing to save space and transport cost, easy to assemble
● Certification: ISO 9001:2000
● OEM/ODM service available
Specification:
CAPACITY
DIMENSION
ASSEMBLED PACKING (CBM)
UNASSEMBLED PACKING (CBM)
18U
600x600mm
0.4
0.17
600x800mm
0.53
0.2
600x1000mm
0.65
0.23
22U
600x600mm
0.49
0.2
600x800mm
0.63
0.25
600x1000mm
0.78
0.3
27U
600x600mm
0.57
0.23
600x800mm
0.75
0.29
600x1000mm
0.93
0.34
32U
600x600mm
0.66
0.28
600x800mm
0.87
0.33
600x1000mm
1.1
0.38
37U
600x600mm
0.75
0.3
600x800mm
0.99
0.35
600x1000mm
1.23
0.42
42U
600x600mm
0.84
0.32
600x800mm
1.1
0.38
600x1000mm
1.37
0.46
800x800mm
1.5
0.43
800x1000mm
1.82
0.54
800x1200mm
2.16
0.61
Description:
● Tempered glass front door
● Vented split rear door
● OEM service
● Door frame with vented holes
● 19” horizontal PDU
● Grounding mark
● Pre-punched holes for cabling
● Cooling fan unit (optional)
● Standard: Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard.
● Compatible with metric ETSI and 19 inch international standard.
● Material: Zinc plated mounting profiles, SPCC Cold rolled steel.
● Material Thickness: Mounting profile: 2.0mm, mounting rails: 1.2mm, Others: 1.0mm
● Loading Capacity: 800kg
● Protection grade: IP20
● Ventilation Rate of Cabinet doors: ≥75%
● Surface Finish: Degreasing, Pickling, Phosphating, Powder Coating
● Color: RAL9004(Black), RAL7035(Grey white)
Advantages:
● Secure, firm and reliable
● Easy to maintain equipment
● Two Packing Ways:
1. Assembly packing to save labour cost, ready to resell or use
2. Disassembly packing to save space and transport cost, easy to assemble
● Certification: ISO 9001:2000
● OEM/ODM service available
