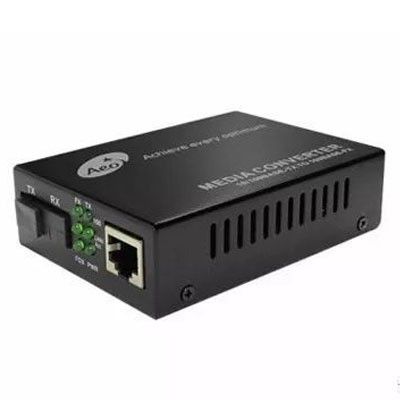

Gigabit Fiber Transceiver

Gigabit Fiber Transceiver

• Automatically compatible with network protocols such as IEEE802.3 IEEE802.3U and IEEE802.3X;
• Support full-duplex and half-duplex transmission mode with auto-negotiation capability;
• Support MDI/MDI-X adaptive, with internal storage and forwarding mechanism;
• Supports longest 1632byte long packet transmission;
• Built-in efficient switching core to suppress broadcast storm, flow control, CRC error check;
• Provide ultra-low latency data transmission;
• With the APC circuit, the output optical power is constant and the dynamic range is large;
• Gigabit fiber transmission, large capacity, easy to upgrade and expand;
• Advanced adaptive technology, no need for on-site electrical or optical adjustment when using;
• Fiber interface type: Standard SC (optional ST, FC interface).

Accessories

Product Specification

Backplane bandwidth	4G
Cache	1M
MAC address table	1K
Maximum frame length (bytes)	1632bytes
10/100/1000Mbps electrical port	1, adaptive RJ45 interface
1000Mbps optical port	1 Gigabit optical port, standard SC (optional ST, FC interface)
IPC/VLAN DIP switch	not support
Fiber port transmission distance	Standard 20km (single mode single fiber), can be customized to 100km
Fiber wavelength	1310nm/1550nm (single mode single fiber)
Input voltage	DC5V ± 5%
shell material	Iron shell
Protection level	IP30
Operating temperature	-10 ° C~60 ° C
Working humidity	5% ~ 90% (non-condensing)
Heat dissipation method	Built-in heat sink passive cooling, fanless silent design
Transmit power	-10~-2 dBm
Accept sensitivity	≤ -24 dBm
equipment power	≤ 3W at full load
Meantime between failures	5 Wan Xiaoshi
Equipment size ( mm )	947026.5mm
