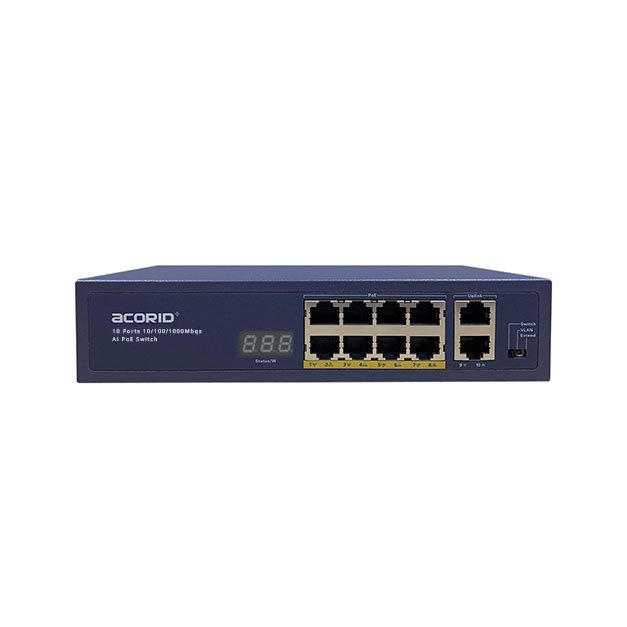

Acorid GLS1708P2G PoE Switch

https://www.techcore.com.ph/web/image/product.template/197/image_1920?unique=6bc44ac

• 8 PoE GE port x 2*GE Uplink
• Power 96W (with option 120W,150W)
• Realtime power consumption display
• PoE port priority mode setting mechanism
• Automatically detect errors and reboot PDs from the gateway
• Support a series of typical modes such as DIP Switch, Plug & Play

This combination does not exist.

Contact Us
Network Switch PoE Switch Acorid



Product Specification


POE Gateway Port 1-8: 10/100/1000Mbps PoE
Uplink Portal Ports 9-10: Gigabit Rj45 Slots
Power Budget 96W (120W and 150W optional)
Maximum PoE Output per port 30W
Bandwidth Backplane 20Gbps
Forwarding packet speed 26.78Mpps
MAC address 8k
Transmission model Storage and forwarding
Power supply AC 100~240V, 50/60Hz
Led Indicator PWR/ Link/Act Source (source quote), 1~16Link/Act (link/activity quote)
Transmission model IEEE802.3x Full-duplex and Backpressure half-duplex
Network standards IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX, IEEE802.3ab 1000 BASE-T, IEEE802.3z 1000 BASE-T, IEEE802.3x Flow Control IEEE802.3af Power over Ethernet, IEEE802.3at Power over Ethernet
Dimension 440mm(L) * 220mm(W) * 44mm(H)
Cable Requirements UTP cat 5 or higher
Operating temperature -10°C~45°C,
Operating humidity 10%~90%
Storage temperature -20°C~70°C,
Storage humidity 5%~95%
