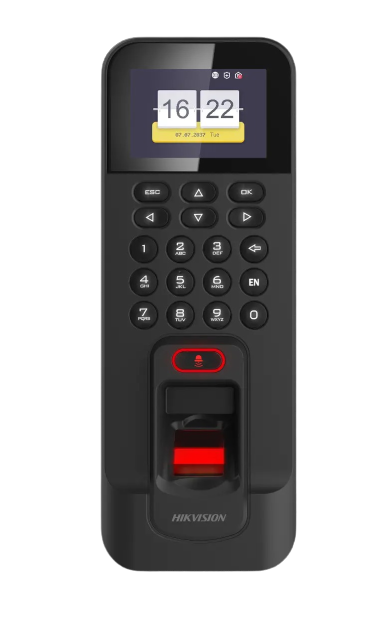

Hikvision DS-K1T804MF Value Series Fingerprint Access Terminal

Hikvision DS-K1T804MF Value Series Fingerprint Access Terminal

• Standalone access control fingerprint terminal
• LCD display screen
• 3,000 fingerprints, 3,000 cards and 100,000 events storage
• Built-in card reader for Mifare1 card
• Communication via TCP/TP and Wi-Fi
• RS-485, wiegand interface
• EHome for public network communication
• Alarm input and output interface
• Multiple time attendance status

This combination does not exist.

Product Specification

Communication Interface	TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)
Working Temperature	-10 ° C to 55 ° C (14 ° F to 131 ° F)
Power Supply	12 VDC/2 A
Audio	1 Buzzer and 1 Loudspeaker
LED Indicator	Power/Status (Red/Green)
LCD Screen	2.4-inch (320 × 240 LCD-TFT Display Screen)
Fingerprint Capacity	Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
Storage	Up to 3000 Valid Cards;Up to 100,000 Event Records; Up to 150,000 Attendance Records
Card Reading Mode	Not Support
Input Interface	Exit Button × 1, Door Sensor × 1 and Alarm Input × 1
Output Interface	Relay (Lock Output) × 1, and Alarm Output × 1
Operating System	Linux
Fingerprint Comparing Mode	1:1 and 1:N, N=3000
Card Reading Response Duration	< 1 s
Fingerprint Authentication Duration	< 1 s
FAR(False Accept Rate)	≤ 0.001 %
FRR (False Rejection Rate)	≤ 0.01 %
Fingerprint Recognizer	Optical Fingerprint Recognizer Module
External Card Reader	Standard Wiegand26/34
Card Reading Distance	0 to 5 cm
Keyboard	Keyboard (Back Light)
Reset Key	× 1
Wi-Fi	Support
Wiegand Interface	Output: Wiegand 26/34;Input: Wiegand 26/34
Transmission Rate	TCP/IP: 10/100Mbps, Self-adaptive;RS485: 19200 bps-N-8-1
USB	USB 2.0; Type A
