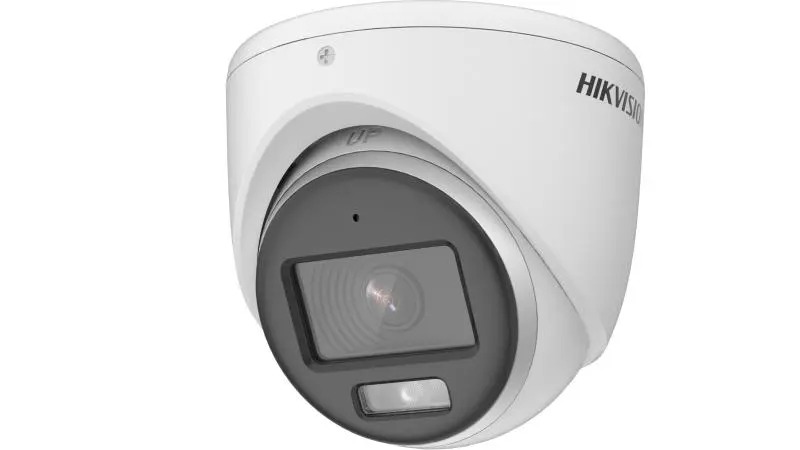

Hikvision DS-2CE70KF0T-MFS 3K ColorVu Audio Fixed Turret Camera

-
  1. All Products
  2. Hikvision DS-2CE70KF0T-MFS 3K ColorVu Audio Fixed Turret Camera

Hikvision DS-2CE70KF0T-MFS 3K ColorVu Audio Fixed Turret Camera

http://www.techcore.com.ph/web/image/product.template/245/image_1920?unique=52495da

•High quality imaging with 3K, 2960 × 1665 resolution
•24/7 color imaging with F1.0 aperture
•2.8 mm, 3.6 mm fixed focal lens
•Up to 20 m white light distance for bright night imaging
•One port for four switchable signals (TVI/AHD/CVI/CVBS)
•Water and dust resistant (IP67)
•High quality audio with audio over coaxial cable, built-in mic

This combination does not exist.

Contact Us




Image Sensor 3K CMOS
Signal System PAL/NTSC
Resolution 2960 (H) × 1665 (V)
Frame Rate TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC
Min. Illumination 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm fixed focal lens
Field Of View 2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122° 3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°
Lens Mount M12
Light Alarm Solid Light Alarm (White Light)
Day & Night 24/7 Color Imaging
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
White Light Auto/Off
Image Mode STD/HIGH-SAT/HIGHLIGHT
AGC Yes
Day/Night Mode Color
White Balance Auto/Outdoor/Global/Manual
AE (Auto Exposure) Mode BLC;HLC;Global;HLS;DWDR
Noise Reduction 2D DNR
Language English
Function Defective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
Video Output Switchable TVI/AHD/CVI/CVBS
Audio In Built-in mic
Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 25%, *You are recommended to use one power adapter to supply the power for one camera.
Consumption Max. 2.5 W
Protection Level IP67
Material Metal
White Light Range Up to 20 m
Communication HIKVISION-C
Dimension Φ 85.1 mm × 77.62 mm (Φ 3.35" × 3.05")
Weight Approx. 328 g (0.72 lb.)
